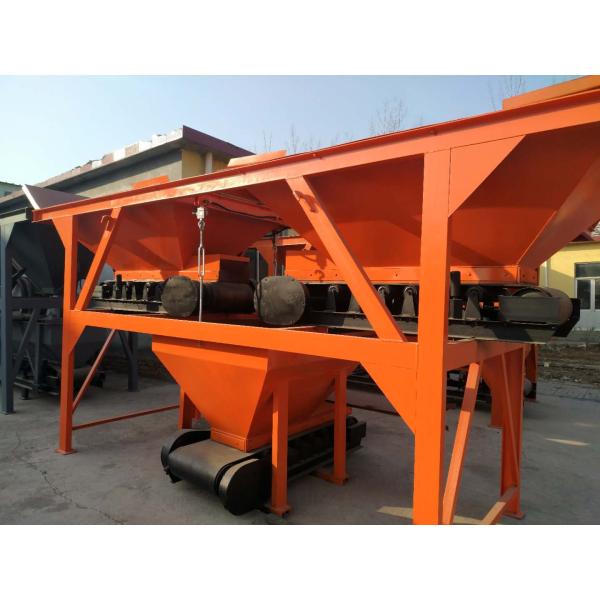

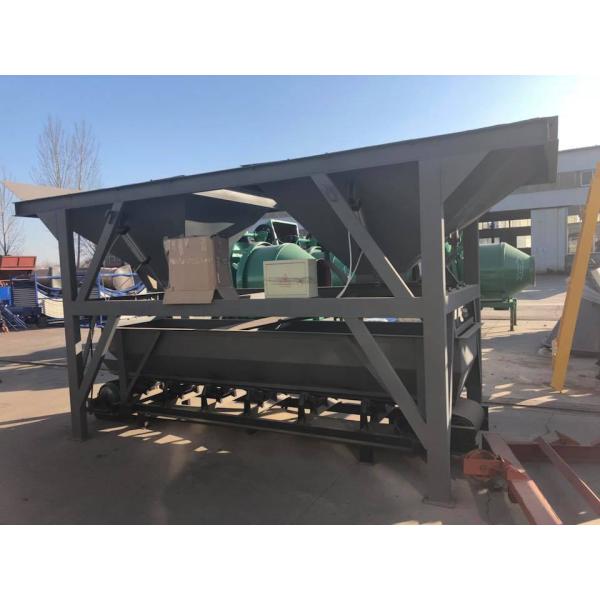

PLD1600 Three Bins Concrete Batching Machine Cement Aggregate Batcher
Introduction:
PLD1600 three bins concrete aggregate machine
Concrete batching machine is used for the aggregates batching for concrete mixing station. The aggregates can be 2-4 types, such as coarse stone, fine stone, sand and others. The proportion of each aggregate is weighed automatically controlled by microcomputer. There are hopper cumulative weighing, belt cumulative weighing and separated hopper weighing.
The aggregates weighing batcher is an automatic equipment used for quantitative distribution of various materials such as sand and gravel. It is mainly used in the concrete construction industry to replace artificial scales or volumetric measurement methods. It has high measurement accuracy, high distribution efficiency and high degree of automation. It is one of the main parts of the complete set of equipment for automatic concrete mixing plant.
Talented Sky Industry Co.,Ltd has been committed to producing the aggregate weighing batcher for decades. With state of the art technology and advanced processing art, our products are very popular with the customers home and abroad.With our valued products and production capacity,we are capable to be your business partner for the ready mixed concrete and precast elements production.
Features:
- Fine and coarse weighing design to maintain high weighing accuracy.
- Excellent load cell maintain the accurate and stable weighing.
- Reliable main components are well-known brands at home and abroad.
- Reasonable overall structure with strong rigidity and beautiful outlook.
- Short weighing time and high efficiency.
- A material hood on the head of the belt conveyor is to effectively prevent spillage.
- A screw tensioning device at the tail of the belt is convenient and quick to adjust the belt tension at any time.
- The vibrators are installed on the side walls of the sand storage hopper and the sand weighing bin, which facilitates rapid weighing and quick unloading.
Technical data:
| Model | PLD1600 |
| Weighing bin volume | 1.2m3 |
| Storage hopper volume | 2*5m3 |
| Productivity | 75m3/h |
| Weighing precision | ±2% |
| Max.weighing | 3000kg |
| Nos of aggregates | 2 |
| Feeding height | 2.8m |
| Belt conveyor speed | 1.4m/s |
| Power | 3*5.5kw |
| Overall weight | 3000kgs |
| Dimension(L*W*H) | 6600mm*2000mm*3200mm |
| Application | Concrete batching plant 50m3 |
More Details:
Simple structure,easy for transportation and operation.
The accumulative weighing mode and separate weighing mode for the batcher can be designed according to the customer’s requirements
Excellent load cell and vibrator installed on each aggregate bins maintain the accurate and stable weighing
